Local bridge (Python)

MagFEM runs in the browser, but it can be driven by scripts on your computer: change variables, solve, read results and rebuild the geometry while you watch the model change live. This enables parameter sweeps, optimization and couplings the app does not have (mechanics, thermal…).

Since a web page cannot accept connections, a small program on your machine acts as the bridge: the local bridge (python -m magfem). The page connects to it over WebSocket, and scripts talk to it over HTTP.

script (Python, Matlab, Julia, curl…) ──HTTP──▶ bridge (127.0.0.1:8765) ◀──WebSocket── MagFEM page

Install

Requires Python 3.9 or newer; the package only uses the standard library.

pip install "git+https://github.com/thalesmaoa/magfem#subdirectory=bridge/python"

To update: pip install -U "git+https://github.com/thalesmaoa/magfem#subdirectory=bridge/python".

Connect

In a terminal, run the bridge. With --key you choose the key (without it, a new key is generated every time):
```
python -m magfem --key my-key
```

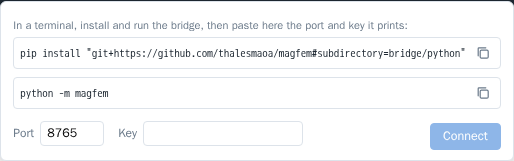

In the app, click Local script (status bar, bottom right), check the port (8765) and paste the key. The app remembers the last port and key.
The terminal reports that the page connected and opens the magfem> console.

The terminal console

With the page connected, python -m magfem becomes a console tied to the app, like the web console:

MagFEM bridge 1.0.3 em http://127.0.0.1:8765
  No app: clique em 'Script local', porta 8765, chave: my-key
  Esperando a página conectar… (Ctrl+C encerra)
● Página do MagFEM conectada. Digite comandos do console (help() lista; Ctrl+D sai).
  Scripts em outro terminal: mf = magfem.connect(key="my-key")
magfem> g.circle((0, 0), r=5)
  "c4"

(The bridge messages are in Portuguese for now.)

Tab completes commands, ids and variables (the suggestions come from the page);
↑ repeats commands; Ctrl+D leaves; Ctrl+C stops the bridge;
the prompt only shows while the page is connected; if it drops, the console waits for it to reconnect;
commands sent by scripts show up tagged [script].

Use --no-console for the bridge alone, without the console.

Python scripts

With the bridge running in one terminal, a script in another terminal connects with the same key:

import magfem

mf = magfem.connect(key="my-key")        # waits for the page to connect
mf.set_var("I", "5")                     # project variable
mf.solve()                               # meshes if needed, solves and waits
print(mf.result("Coil_L"))               # number of a result variable
print(mf.results())                      # {name: (value, unit)}
t, i = mf.series("Coil_I")               # transient: curve over time
mf.run('g.circle((0, 0), r=5)')          # any console line (or several, separated by \n)

Without a bridge already running, magfem.connect() starts one inside the script itself and prints the port and key.

Method	Does
`magfem.connect(port=8765, key=None, wait=True, timeout=None)`	connects (or starts the bridge) and waits for the page
`mf.run(code)`	runs console lines; returns the value of the last one
`mf.set_var(name, expr)`	`g.var(name, expr)`
`mf.solve(physics=None)`	solves and waits for it to finish
`mf.result(name, physics=None)`	value of a result variable
`mf.results(physics=None)`	`{name: (value, unit)}`
`mf.series(name)`	`(times, values)` in transient analysis
`mf.status()`	`{"browser": bool, "version": ...}`

Errors

A command that fails in the app raises magfem.BridgeError with the message and the failing line. With timeout, waiting for the page also ends in this error:

import magfem

try:
    mf = magfem.connect(key="my-key", timeout=60)
    mf.run("g.circle((0, 0), r=5)")
    mf.solve()
    print(mf.result("Fx"))
except magfem.BridgeError as e:
    print("MagFEM:", e)

s.solve() and m.generate() finish before the next line starts, so a script can chain commands without waiting by hand.

Security

The bridge only listens on 127.0.0.1 (your machine).
It only accepts WebSocket connections from MagFEM pages (thalesmaia.com or localhost).
Every HTTP command needs the key in the X-MagFEM-Key header. There is no empty key: without one, any program on your machine, or a malicious page open in the browser, could send commands.

Plain HTTP

Any language that speaks HTTP can use the bridge. See Matlab, Julia and HTTP.
